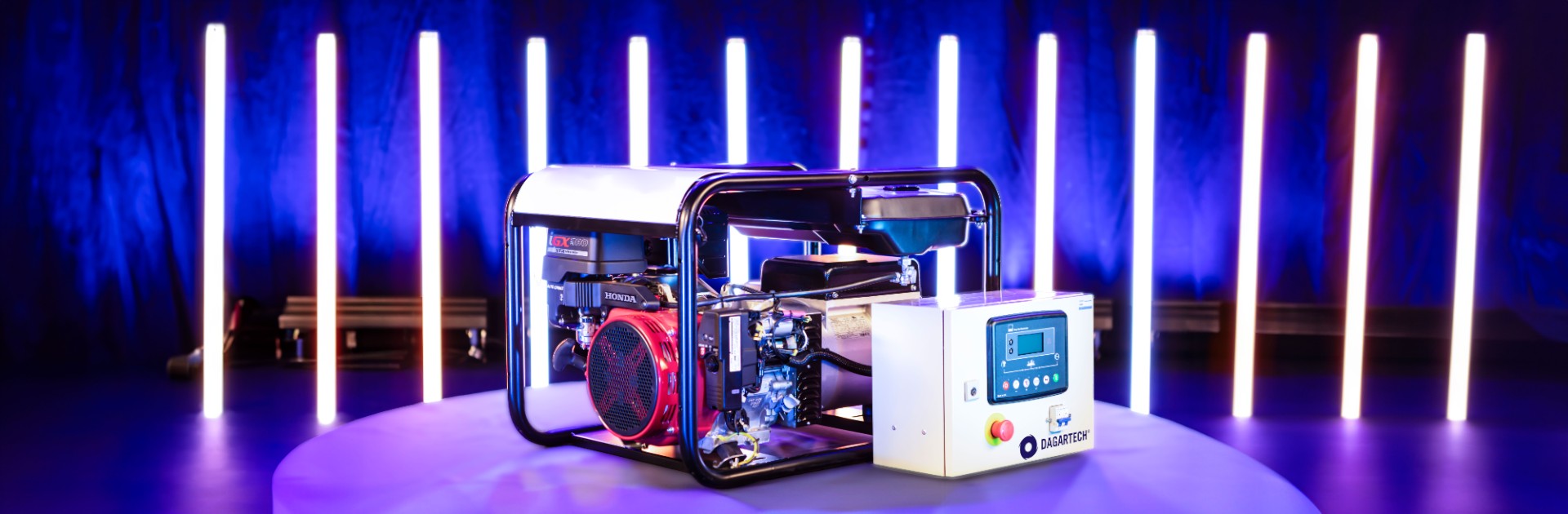

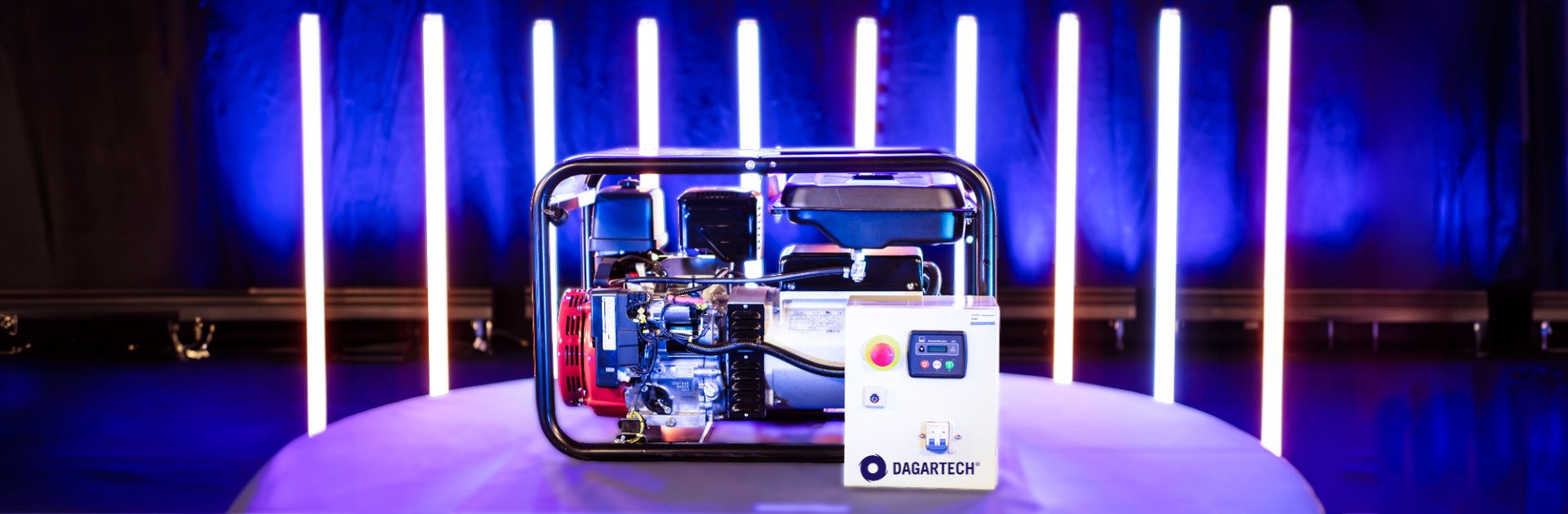

DGH 8 TF R
Automatic portable three-phase generator. You can choose between our signal start/stop option or the version for grid failure based on the application.
Power (PRP / ESP):
7 / kVA (5,6 / kW)
VERSION:
Open
VOLTAGE:
400/230V
EMISSIONS LEVEL: EU Stage V
CE DECLARATION OF CONFORMITY
DGH 8 TF R
DGH 8 TF R
DGH 8 TF R
DGH 8 TF R
DGH 8 TF R
DGH 8 TF R
PRODUCT DETAILS
VERSION
Open
Start-up type
Electric
Type of chassis
Static frame
Fuel
Unleaded gasoline
Voltage
400/230V
RPM
3000
Number of phases
3
L (mm)
820
W (mm)
560
H (mm)
532
Weight (Kg)
81
Engine make and model
HONDA IGX390
Type of regulation
Electronic (STR)
Refrigeration
Air-cooled
Emissions
EU Stage V
Consumption 75%
1,6 l/h
Consumption 100% PRP
2,2 l/h
Tank size (l)
15 l
Autonomy 75% PRP
9,3 h
Autonomy 100% PRP
6,9 h
Alternator make and model
MECCALTE ET16F-160
Type of alternator regulation
Brush + AVR
DGH 8 TF R

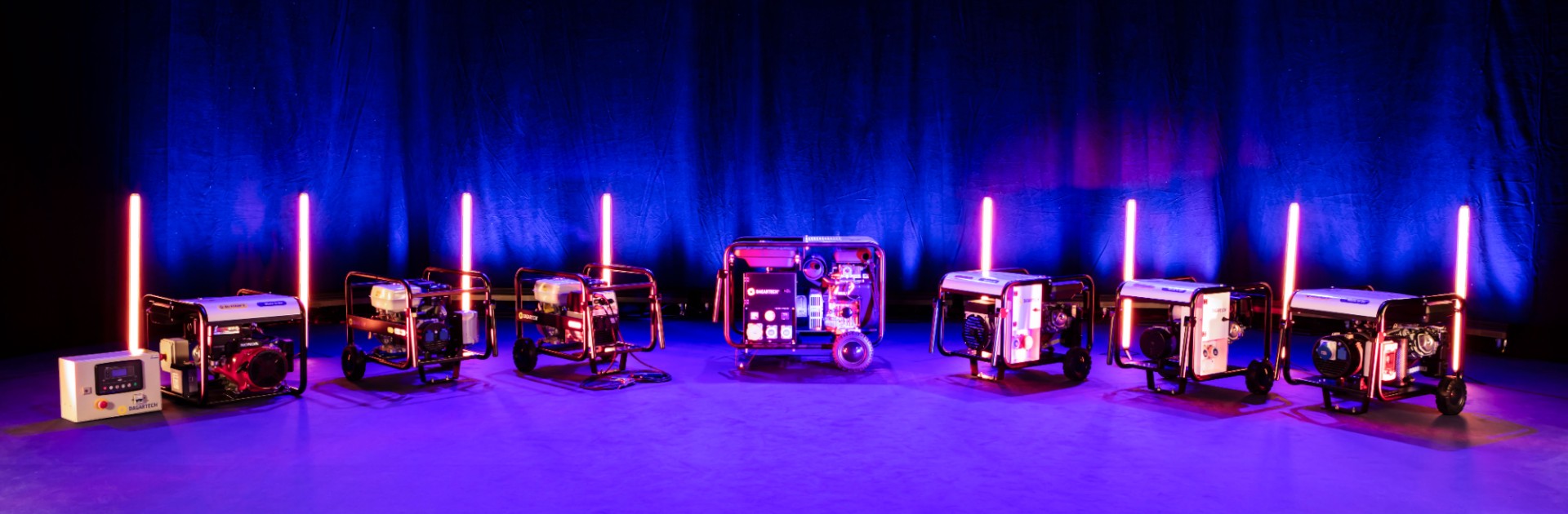

Range Portable - Residential
| 50Hz
