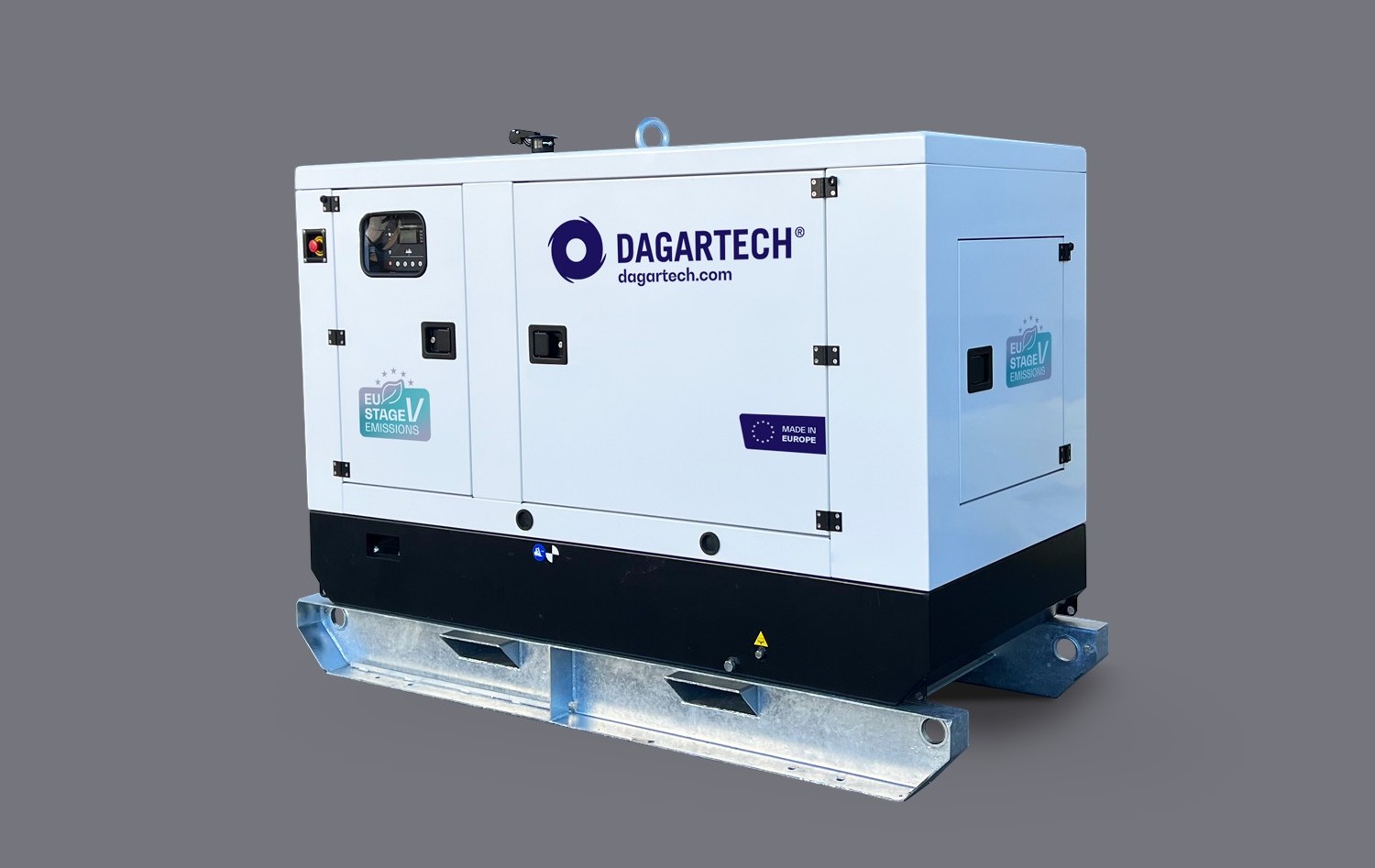

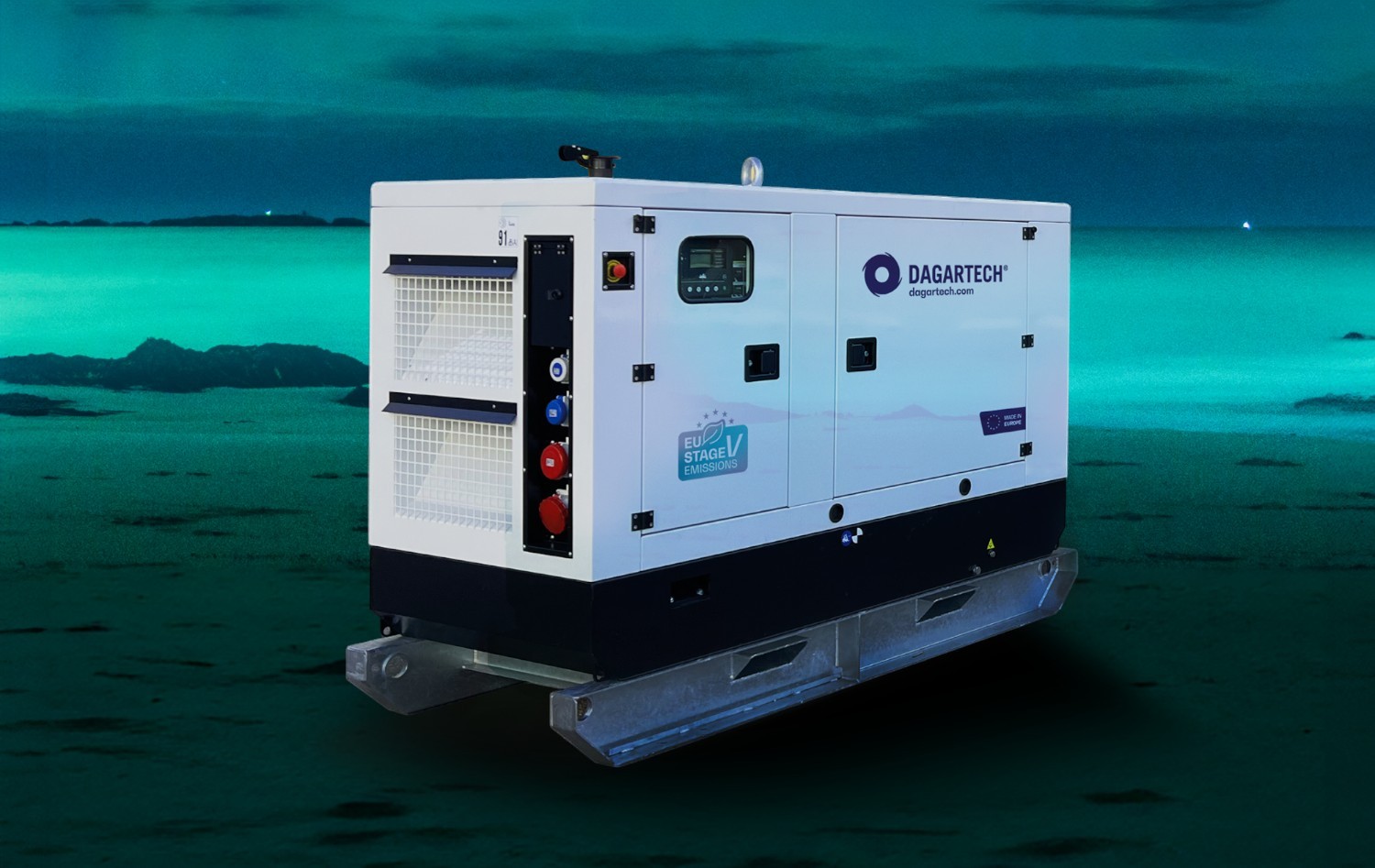

DGDR 30 ST
Three-phase generator. You are facing a robust and efficient unit, prepared to handle demanding environments, complying strictly with the requirements of EU Stage V directive.
Power (PRP / ESP):
30 / 33 kVA (24 / 26 kW)
VERSION:
Soundproofed
VOLTAGE:
400/230V
EMISSIONS LEVEL: EU Stage V
CE DECLARATION OF CONFORMITY
EU Stage V generator set
Regulation (EU) 2016/1628 on gaseous and particulate pollutant emissions.
DGDR 30 ST
DGDR 30 ST
DGDR 30 ST
DGDR 30 ST
DGDR 30 ST
DGDR 30 ST
PRODUCT DETAILS
VERSION
Soundproofed
Fuel
Diesel
Voltage
400/230V
RPM
1500
Number of phases
3
L (mm)
2337
W (mm)
1042
H (mm)
1643
Weight (Kg)
1250
Engine make and model
DEUTZ TD2.2L3
Type of regulation
Electronic
Refrigeration
Water-cooled
Emissions
EU Stage V
Consumption 50%
4 l/h
Consumption 75%
5,7 l/h
Consumption 100% PRP
5,7 l/h
Tank size (l)
150 l
Autonomy 50% PRP
37,5 h
Autonomy 75% PRP
5,7 h
Autonomy 100% PRP
19,7 h
Alternator make and model
STAMFORD S0L2-P
Type of alternator regulation
VITA01
Switch model
Schneider Acti 9 50A 4P
Amps ESP (A)
47,6
Make and model
DSE 7320 MKII
DGDR 30 ST
Range Rental Plus
| 50Hz
